Full Automatic Wooden Hanger Making Line

Full Automatic Wooden Hanger Making Line include Automatic Wood Cutting Machine Four-Side Shaving Machine Automatic Wooden Hanger Tenon Making Machine Automatic Wood Hanger Shape Cutting Machine Automatic Pit Hole Making Machine Wooden Hanger Copying Shaving Machine Wooden Hanger Pieces Assembling Machine Hanger Hook Inserting Machine   1.  Automatic Wooden Hanger Wood Plate Cutting Machi ...
  • PRODUCT DETAIL

Automatic-Wooden-Hanger-Making-Line

Full Automatic Wooden Hanger Making Line include

  1. Automatic Wood Cutting Machine
  2. Four-Side Shaving Machine
  3. Automatic Wooden Hanger Tenon Making Machine
  4. Automatic Wood Hanger Shape Cutting Machine
  5. Automatic Pit Hole Making Machine
  6. Wooden Hanger Copying Shaving Machine
  7. Wooden Hanger Pieces Assembling Machine
  8. Hanger Hook Inserting Machine

Full-Automatic-Wooden-Hanger-Making-Line

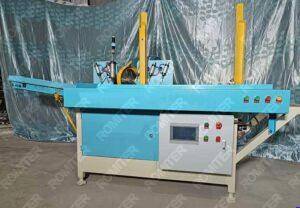

1.  Automatic Wooden Hanger Wood Plate Cutting Machine

Wooden-Pieces-Cutting-Machine

Wooden Hanger Wood Plate Cutting Machine is used to cut long wooden plate to short parallelogram shape for following wooden hanger making.

Specification

Model WH-SC
Power 7(kw)
Dimension 1800*1450*1200(mm)
Weight 800(kg)
Feeding Speed 42 pcs/min
Application Wooden Hanger Flitch Making
Voltage Customized (tri-phase)



2. Automatic Wooden Hanger Flitches Four Side Shaving Machine

Four-Side-Shaving-Machine-for-Wooden-Hanger-Production-Line

Specification

Model WH-M
Power 11(kw)
Dimension 1800*1150*900(mm)
Weight 600(kg)
Feeding Speed 45 pcs/min
Application Wooden Plate Size Shaping
Voltage Customized (tri-phase)

3. Automatic Wooden Hanger Pieces Tenon Making Machine

Wooden-Hanger-Tenon-Making-Machine

Automatic Wooden Hanger Pieces Tenon Making Machine is used to make tenon on the two side of wooden pieces. These tenon will be used for the following wooden hanger pieces assembling.



Specification

Model WH-T
Power 4.5(kw)
Dimension 1200*1150*1300(mm)
Max. Processing Length 400(mm)
Max. Processing Thickness 60(mm)
Max. Processing Width 25(mm)
Weight 500(kg)
Feeding Speed 45 pcs/min
Application Wooden Hanger Tenon Making
Voltage Customized (tri-phase)

4. Automatic Wood Hanger Shape Sawing Machine

Wooden-Hanger-Flitch-Shape-Cutting-Machine

Automatic Wood Hanger Shape Sawing Machine is used to saw wooden pieces into the following shape. After this machine, we get raw shape wooden hanger.

Wooden-Hanger-Shape-Sawing-Machine

Specification

Model WH-S
Power 6(KW)
Dimension 1500*1100*1300(mm)
Max. Processing Length 450(mm)
Max. Processing Thickness 20(mm)
Max. Processing Width 60(mm)
Weight 400(mm)
Feeding Speed 45pcs/min
Application Wooden Hanger Shape Cutting
Voltage Customized (tri-phase)



5. Automatic Wooden Hanger Pit Hole Making Machine

Wooden-Hanger-Body-Pit-Hole-Sawing-Machine

This machine is used to make one pit hole on the wood hanger, so it will have the feature of auti-slip.

Specification

Model WH-PH
Power 3(kw)
Dimension 1600*800*1200(mm)
Weight 900(kg)
Application Wooden Hanger Pit Hole Making
Voltage Customized (tri-phase)

6.  Wooden Hanger Copying Making Machine

Wooden-Hanger-Shape-Copying-Shaving-Machine

Wooden Hanger Copying Making Machine is used to make final wooden hanger pieces from wooden hanger shape material.

Wooden-Hanger-Copying-Shaving-Machine

Specification

Model WH-C
Power 5.5(kw)
Dimension 1600*1400*1200(mm)
Max. Processing Length 600(mm)
Max. Processing Thickness 150(mm)
Max. Processing Width 100(mm)
Weight 1000(kg)
Feeding Speed 8m/minutes
Application Wooden Hanger Copying Process
Voltage Customized (tri-phase)



7.  Wooden Hanger Wood Pieces Assembling Machine

Wooden-Hanger-Wood-Pieces-Assembling-Machine

Pneumatic Wooden Hanger Pieces Joint Assembling machine is used to assemble wooden pieces into following wooden hanger.

Wooden-Hanger-Pieces-Joint-Assembling-Machine

Specification

Model WH-A
Working Type Manual
Dimension 600*600*600(mm)
Weight 100(mm)
Application Wood Hanger Pieces Assembling

8. Pneumatic Wooden Hanger Hook Inserting Machine

pneumatic-wooden-hanger-hook-inserting-machine

Manual Wooden Hanger Hook Inserting Machine is used to insert hook on wooden hanger.

Specification

Model WH-HP
Working Method Pneumatic Type
Dimension 450*150*300(mm)
Max. Thickness 50(mm)
Max. Width 100(mm)
Total Weight 10(kg)
Application Metal Hook Insert

9. Connection Conveyor for Whole Line



Working Video of Wooden Hanger Production Line
